Astron Scrambler
Kit# K-37
Yellow Hang Tag - Pre Damon Era
White Vertical Facecard
Images by Gerry Fortin
Designer: Bill Simon
Production Years: 1969
Retail Pricing Range: $3.00
Rarity: Rare
Description: Vertical Image: pre-Damon era Astron Scrambler rocket kit with yellow pre Damon hang tag and black frame facecard. The area inside upper frame is white which is the backdrop for gray Scrambler rocket image and black and red lettering illustrating pricing "Only $3.00", Estes logo and kit capabilities and specifications.
The Astron Scrambler is a three 18mm engine clustered rocket designed to lift an egg payload and safely recover the unbroken contents with separate large parachutes for payload and main body.
The kit features one body tube, a balsa nose cone, a balsa adapter, a clear payload tube, two sheets balsa fin stock, 3 engine cluster mounting system, two 18" plastic parachutes, one launch lug and stand off, clustering technical report and instructions.
Additional information can be found at the following links;
JimZ Kit Plan Link: Estes K37
Essense Model Rocket Reviews: Estes OOP Scrambler Review
Specifications: Length (23.5 in), Weight (2.8 oz), Body and Payload Diameter (1.637 in and 1.796 in)
Recommended 18 mm Engines: A8-3, B6-4, B14-5, C6-5

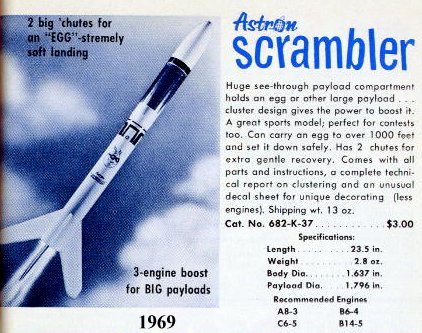

Estes Catalog Artwork
