Rotated Reverse Index
Legend Obverse 1860 - 1891
| Date
and Variety |
Major
Sets |
Obverse Image |
Reverse Image |
Description |
| 1862-S | ||||
| F-102a |
|
 |
 |
When paired with Obverse 1, Reverse B has an RRDM event and is rotated right by 35 degrees. |
| 1865 | ||||
| F-102c |
|
 |
 |
Ahwash lists this variety as a business stike and describes as "completely upset, 180 degree rotated caused by misaligned dies". However, the plate coin to the left is certified by PCGS as a proof. There are ongoing questions by variety specialists as to the originals of RRDM for this important and unappreciated variety. Was this event a minting error or were the few known specimens struck as patterns with "medal turn" die alignment? |
| 1875-S Below Wreath | ||||
| F-109 |
|
 |
 |
The reverse die is rotated left by 50 degrees. This rare RRDM event was first identified by Michael Fey during 2004. |
| F-118a |
|
 |
 |
During June 2011, Sean Shaughnessy identified a new 1875-S Below Wreath rotated reverse variety with the reverse die rotated 80 degrees left. |
| 1876 | ||||
| F-117 |
|
 |
 |
This is the only 1876 dime identified with a rotated reverse. The RRDM is measured at 85 degrees left. |

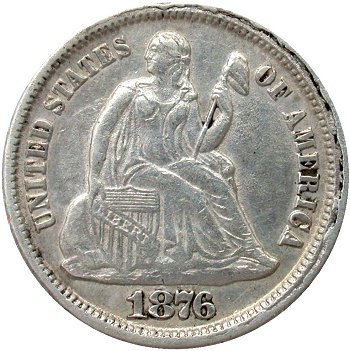

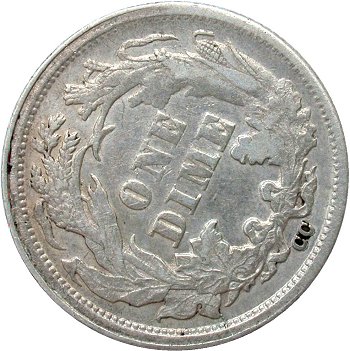

| 1876-CC | ||||
| F-107a |
|
 |
 |
The famous Carson City double die obverse is rarely found with a rotated reverse left. The rotation is approximately 120 degrees. |
| F-107ab |
|
 |
 |
The famous Carson City double die obverse has been located with full 180 degree reverse rotation. This die alignment is typically employed for medals rather than circulating coinage. The 180 degree rotation could be an extension of F-107a die press situation..Only one example is currently known. |
| F-112 |
|
 |
 |
This is the second known occurrence of RRDM for the 1876 Carson City date. Only two examples seen with the reverse rotated right 45 degrees. |
| F-112a |
|
 |
 |
This is a continuation of the second known occurrence of RRDM for the 1876 Carson City date. Only two examples seen with the reverse rotated right 65 degrees. |
| 1888-S | ||||
| F-111a |
|
 |
 |
During 2013, Jason Feldman discovered an 1888 San Francisco dime with RRDM event of approximately 55 degrees left. |
