Doubled Die Index
Stars Obverse, With Drapery 1840-1860
| Date
and Variety |
Major
Sets |
Obverse Image |
Reverse Image |
Variety Macro Image |
Description |

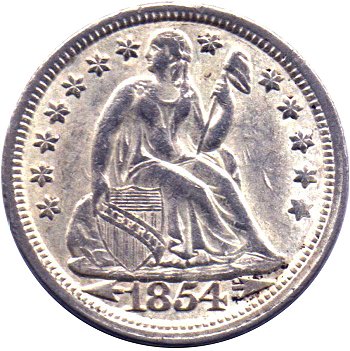

| 1854 With Arrows | |||||

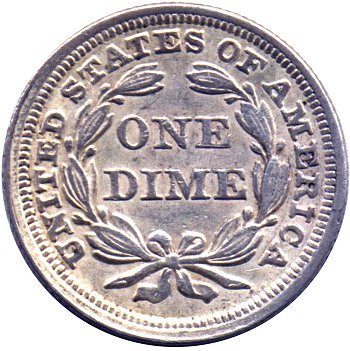

| F-103 |
|
 |
 |
 |

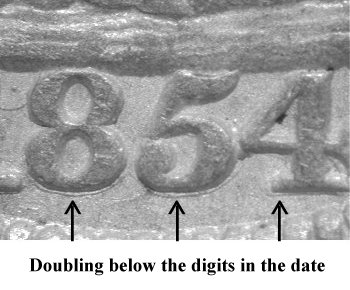

Die doubling is seen below the hubbed date digits. |

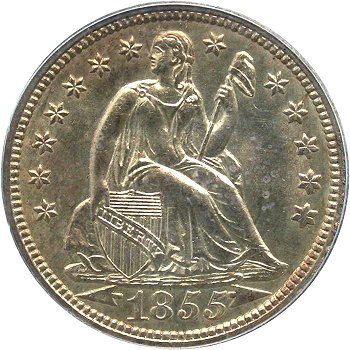

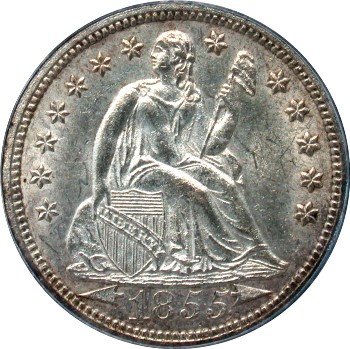

| 1855 With Arrows | |||||

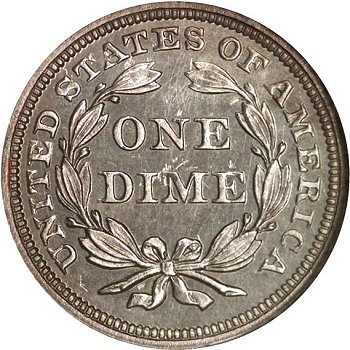

| F-101 |
|
 |
 |
 |

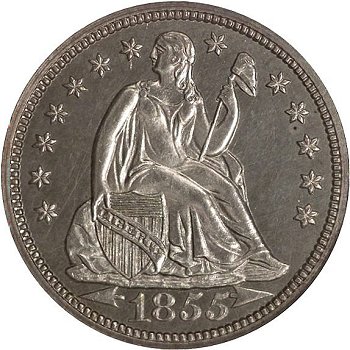

Proof Dies: Die doubling is obvious on both the left and right arrows along with all four date digits. |

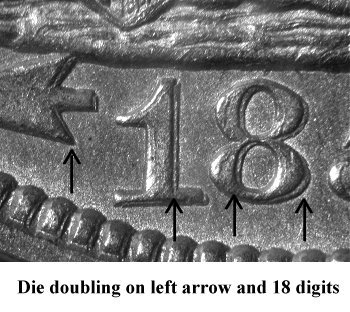

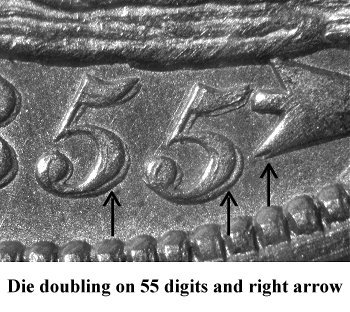

| F-101a |
|
 |
 |
 |
Business Strikes: Die doubling is obvious on both the left and right arrows along with all four date digits. |

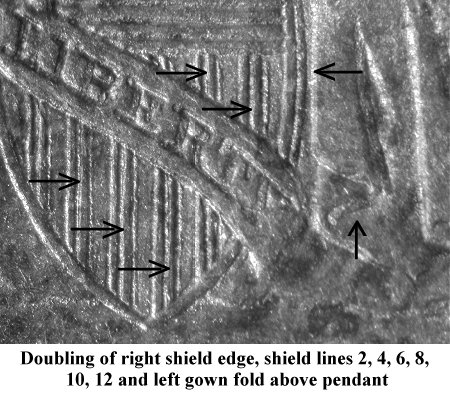

| F-103 |
|
 |
 |
 |
Die doubling is most evident on the entire length of the right edge of the shield. Doubling can also be seen to the right of the upper sections of shield lines #10 and #12. |

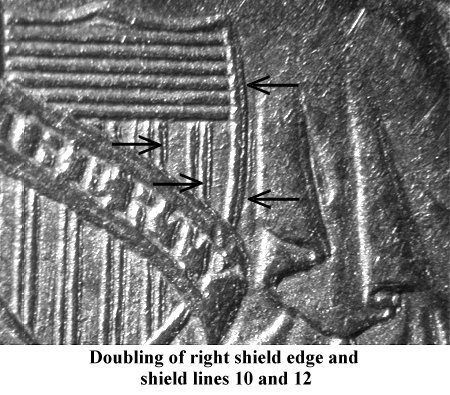

| F-104 |
|
 |
 |
 |
Die doubling can be found in the same locations as F-103. However the doubling of the right edge of the shield is not as strong and does not show on the shield edge below the scroll end. |

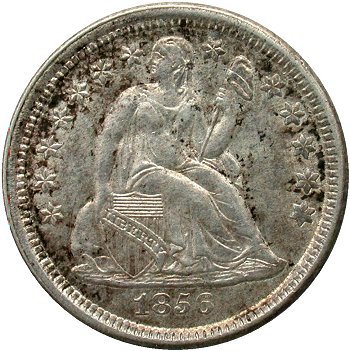

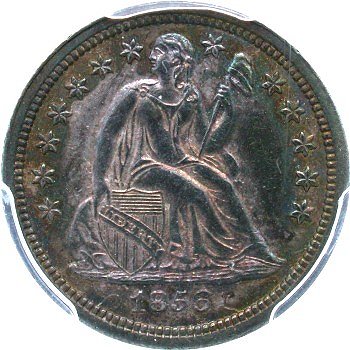

| 1856 Small Date | |||||

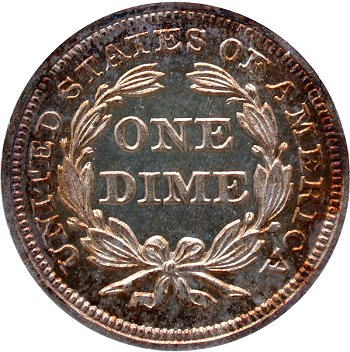

| F-101 |
|
 |
 |
 |

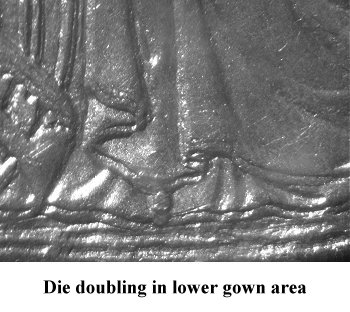

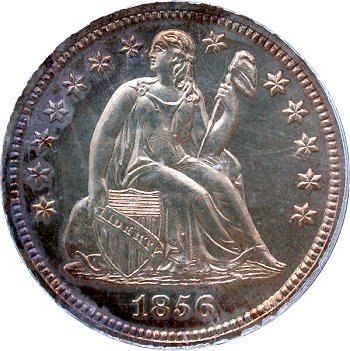

Proof Dies: Obverse die is boldly doubled north at the top of shield and within the lower gown folds. |

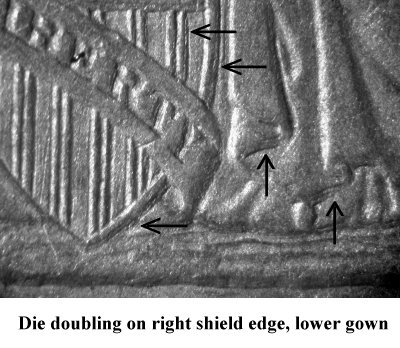

| F-104 |
|
 |
 |
 |

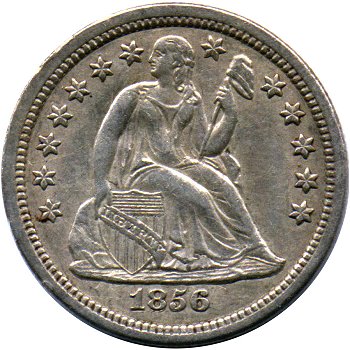

Obverse die is doubled in multiple areas. The horizontal shields lines show doubling under the primary lines while the scroll containing LIBERTY is doubled on its lower edge. The right shield edge is doubled as are the gown folds to the right of the shield including those on both sides of the pendant. |

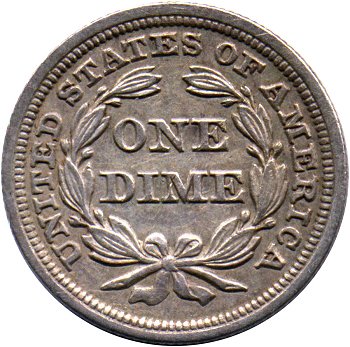

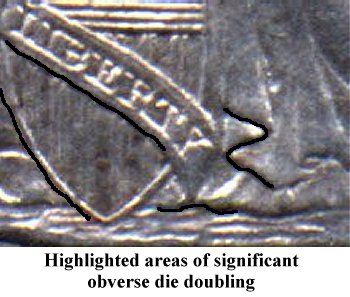

| F-105 |
|
 |
 |
 |
Obverse die is in late die state. Die doubling remains evident below the lower edge of the scroll and along the left edge of the shield. The vertical shield lines are softly struck and doubled right. Doubling is also found on the gown fold to the immediate right of the scroll end. |
| F-108 |
|
 |
 |
 |
Significantly doubled obverse die with the entire shield and gown lines above the pendant doubled east. |

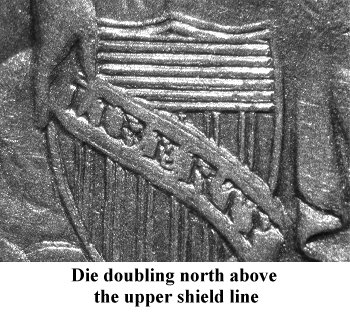

| F-110 |
|
 |
 |
 |
Significantly doubled obverse die with the doubling clearly visible above the top of the shield. |

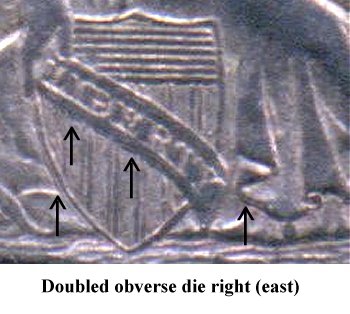

| F-111 |
|
 |
|
 |
Same obverse die as F-105 but in an early die state. Die doubling is seen below the lower edge of the scroll and along the left edge of the shield. |
| 1858 | |||||

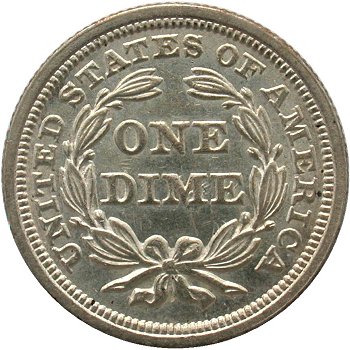

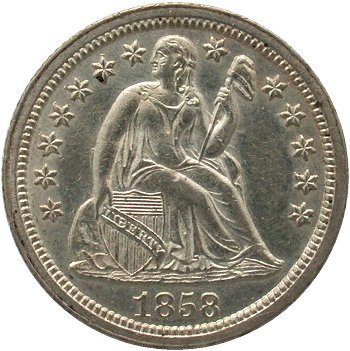

| F-107 |
|
 |
 |
 |

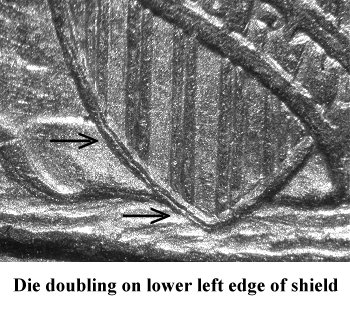

Obverse die exhibits doubling on Star 1 through Star 5 and on the lower left shield edge. |
