Top 25 Liberty Seated Dime Cud Dies
Based on the successful introduction of the Top 100 Liberty Seated Dime Varieties and the Top 25 Liberty Seated Dime Shattered Dies and current popularity with advanced variety specialists, Dr. Tim Cook proposed building a Top 25 LIberty Seated Dime Cud Dies advanced set and provided the following introduction to the completed module.
With the addition of the specialty set of shattered dies to the registry it seemed logical to take the next step to include a registry of seated dime cuds.
As Gerry has stated " a cud occurs when a piece of the working die separates from itself resulting in a void.: As metal flows into this void it appears to be lifted up from the surface of the coin often originating from the rim." Numerous rim cuds exist but only a few of the more difficult and popular are included here. The most spectacular examples are cuds extending into the internal design elements and are usually quite rare and in great demand. The reason for this rarity can be as obvious as the die being discarded shortly after breakage occurred or even the possibility that "damaged" coins of the last century were not valued and instead recycled or continued in circulation until oblivion. Evidence of this can be seen as most cuds are found well worn.
Completing a set of the Top 25 Cuds would be perhaps the most difficult open registry set to complete likely taking decades. This actual set pictured is maybe more of a showcase of a combined collection of advanced sets. Much of this work began with Larry Briggs who collected various seated cuds especially those of 1853 over a period of many years. I was able to purchase this group at the Chicago ANA in the 1990s with Larry's dimes forming the core of this Top 25 cud dies set. I would like to thank Gerry Fortin for his opinions, coins, and photography and Jason Feldman for being a valuable sounding board for this work. Much of my enjoyment in collecting seated dimes is have collegues such as these gentlemen.
Following is the Top 25 Cud Dies table, which provides access to full page web-book descriptions. The table is followed by a quick pictorial description of each of the Top 25 cud varieties.
Table of the Top 25 Cud Dies
Click on the underlined dates to see images and web-book descriptions of each Top 25 cud die.
| Variety Number |
Date |
Variety Location |
Fortin Reference |
Descriptions and Requirement for Variety |
| 1 |
Reverse |
103a |
Two reverse rim cuds at 9:00 and 10:00 with the 9:00 cud extending into the denticles. Reverse has Small O mintmark as employed in 1839. |
|
| 2 |
Reverse |
107b |
Heavy reverse cud at 12:00 and encroaching into letter STA(TES) |
|
| 3 |
Reverse |
111b |
Reverse cud at 12:00 and encroaching into letter STAT(ES) | |
| 4 |
Obverse |
103b |
Obverse rim duds at 10:00 and 4:00. |
|
| 5 |
Obverse |
104a |
Obverse rim cud at 10:00 when paired with Small O reverse die. |
|
| 6 |
Reverse |
105b |
Retained cud at tops of letters UNIT(ED S)TATES |
|
| 7 |
Obverse |
110a |
Emerging obverse cud at bottom of the date digits |
|
| 8 |
Reverse |
102b |
Massive reverse
cud in lower right wreath |
|
| 9 |
Reverse |
107a |
Reverse cud
between 2:00 to 3:00 that is encroaching on top of A(ME)RICA |
|
| 10 |
Reverse |
116a |
Reverse cud
between 2:00 to 3:30 that is encroaching on top of A(MER)ICA |
|
| 11 |
Reverse |
120a |
Large retained
reverse cud between 12:00 to 1:30 that is encroaching on top
of (OF) |
|
| 12 |
Reverse |
121a |
Large retained
reverse cud between 8:00 to 9:00 that is encroaching on top
of (UNIT)ED |
|
| 13 |
Obverse |
103a |
Retained obverse
die cud across bottom of 1875 date digits |
|
| 14 |
Reverse |
106b |
Massive reverse
cud between rim and lower left wreath |
|
| 15 |
Obverse |
107a |
Retained obverse
die cud across bottom of 187 date digits |
|
16 |
Reverse |
107b |
Retained reverse
rim cud between 8:30 to 9:30 |
|
| 17 |
Reverse |
110a |
Retained reverse
rim cud between 3:30 to 5:00 |
|
| 18 |
Reverse |
101b |
Large reverse cud at 6:00 directly below the left and right ribbon ends | |
| 19 |
Reverse |
111a |
Reverse die cuds at 9:00 and 11:00 | |
| 20 |
Reverse |
117a |
Retained reverse cud between 7:00 and 9:00 | |
| 21 |
Reverse |
106a |
Retained reverse cud between 9:00 and 11:00 | |
| 22 |
Reverse |
112 |
Retained reverse cud between 10:30 and 12:00 | |
| 23 |
Reverse |
114b |
Reverse cuds at 9:00 and 10:00 to 11:00 | |
| 24 |
Reverse |
120 |
Massive reverse cud between 2:30 and 4:30 | |
| 25 |
Reverse |
123a |
Retained reverse cud between 9:00 and 10:30 |
Pictorial of the Top 25 Liberty Seated Dime Cud Dies

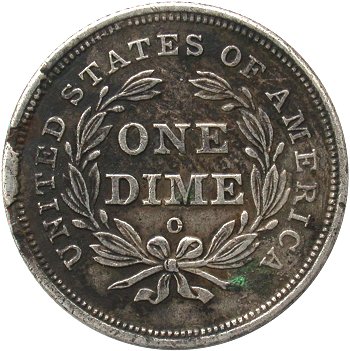

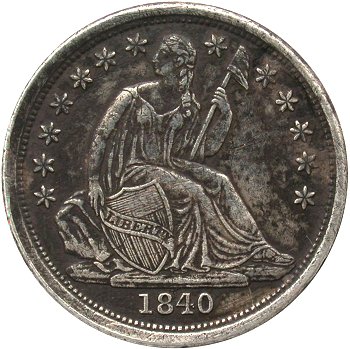

Cud Die #1 - 1840-O F-103a
Reverse Rim Cuds at 9:00 and 10:00

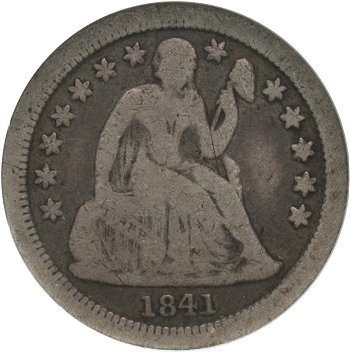

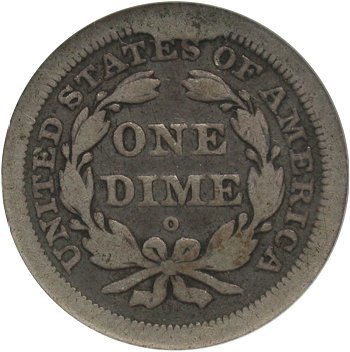

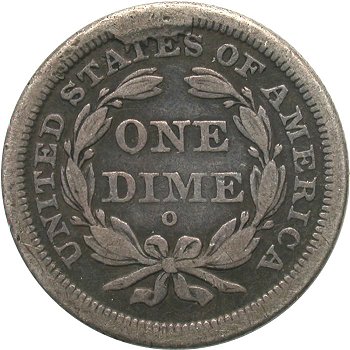

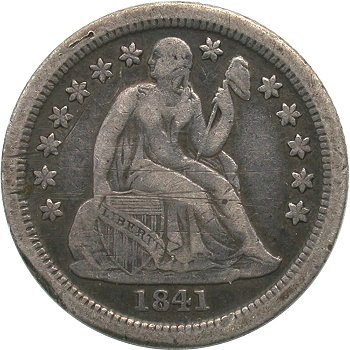

Cud Die #2 - 1841o F-107b
Heavy Reverse Cud at 12:00 into STA(TES)
Cud Die #3 - 1841-O F-111b
Reverse Cud at 12:00 into STAT(ES)

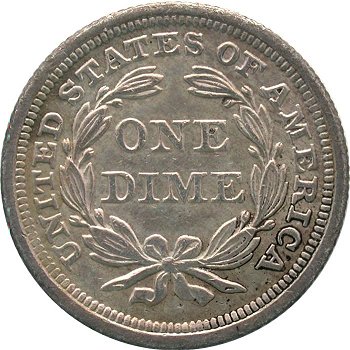

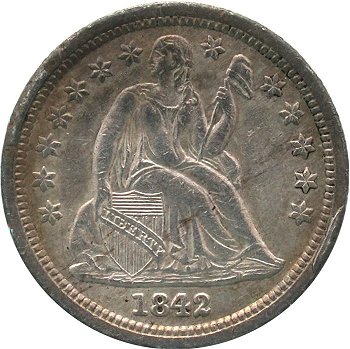

Cud Die #4 - 1842 F-103b
Obverse Rim Cuds at 10:00 and 4:00

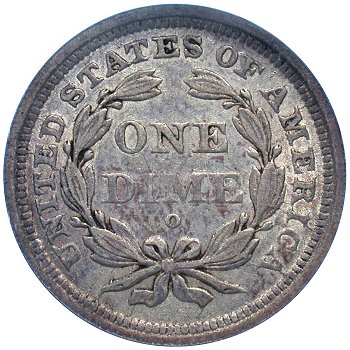

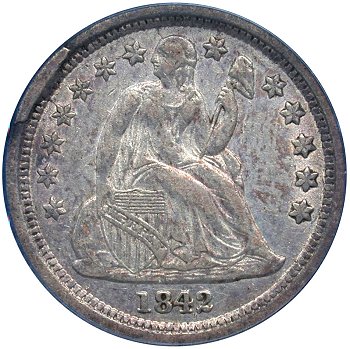

Cud Die #5 - 1842-O F-104a
Obverse Rim Cud at 10:00
Ahwash Plate Coin

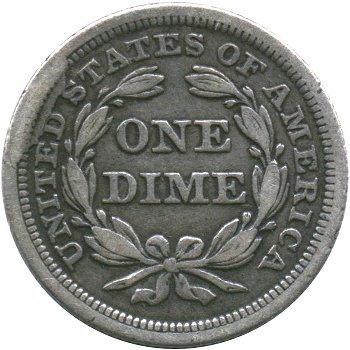

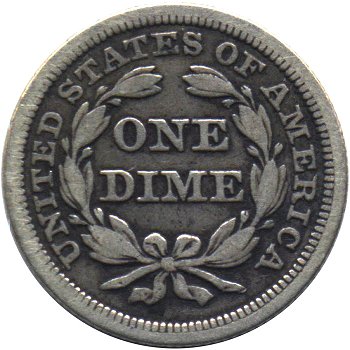

Cud Die #7 - 1852 F-105b
Retained
Cud at Letters UNIT(ED S)TATES

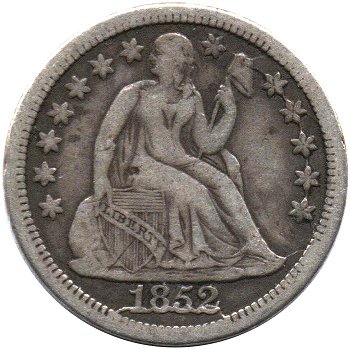

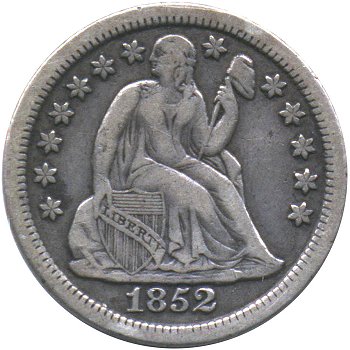

Cud Die #6 - 1852 F-110a
Emerging Obverse Cud at Bottom of Date Digits

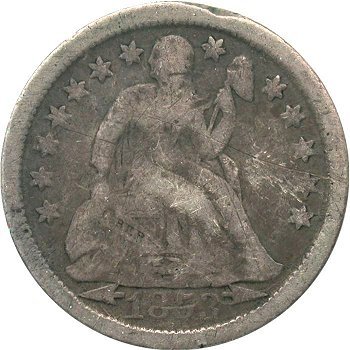

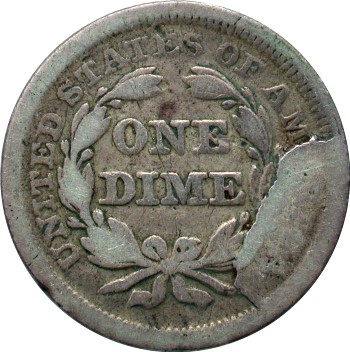

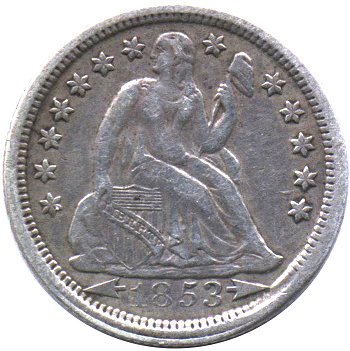

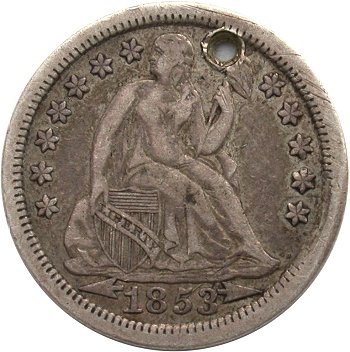

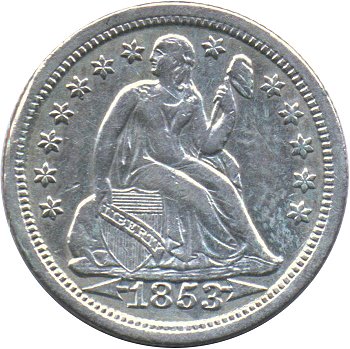

Cud Die #8 - 1853 With Arrows, Hubbed F-102b
Massive Reverse Cud
Greer Plate
Coin

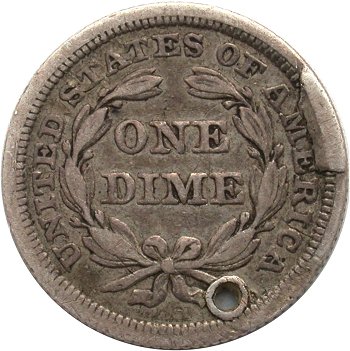

Cud Die #9 - 1853 With Arrows, Unhubbed F-107a
Reverse Cud Between 2:00 - 3:00

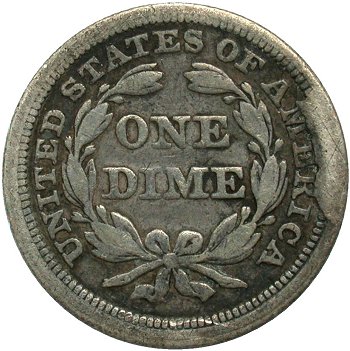

Cud Die #10 - 1853 With Arrows, Unhubbed F-116a
Reverse Cud Between 2:00 - 3:30

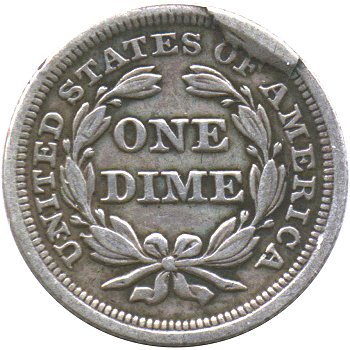

Cud Die #11 - 1853 With Arrows, Unhubbed F-120a
Retained Reverse Cud Between 12:00 - 1:30
Greer Plate Coin

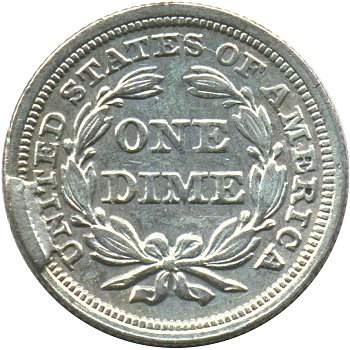

Cud Die #12 - 1853 With Arrows, Unhubbed F-121a
Retained Reverse Cud Between 8:00 - 9:00
Greer Plate Coin

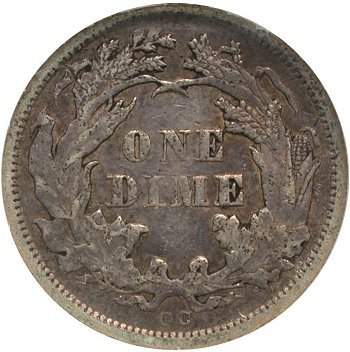

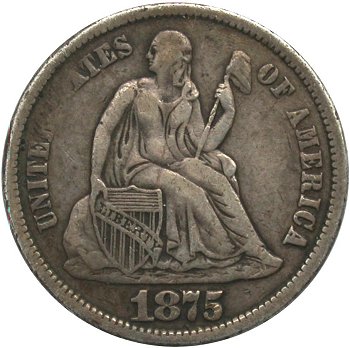

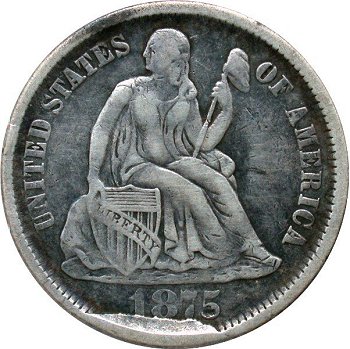

Cud Die #13 - 1875-CC Below Wreath F-103a
Retained Cud Below All Date Digits

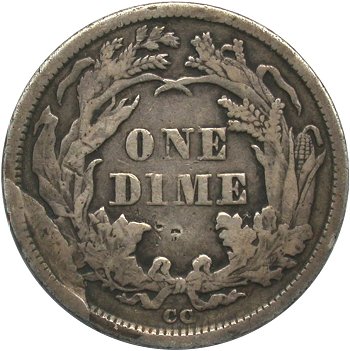

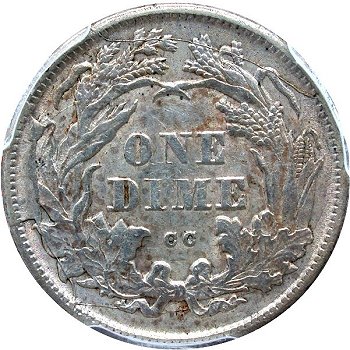

Cud Die #14 - 1875-CC Below Wreath F-106b
Massive Cud Between Rim and Lower Left Wreath

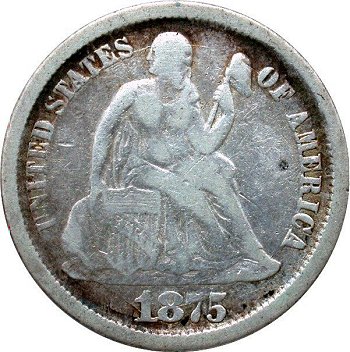

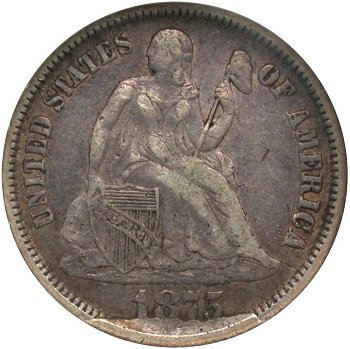

Cud Die #15 - 1875-CC Below Wreath F-107a
Retained Cud Below 187 Date Digits

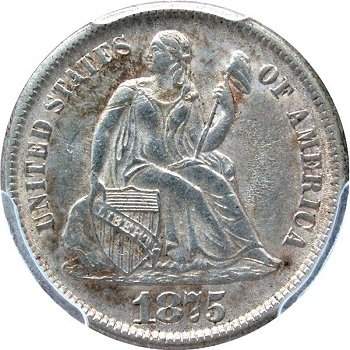

Cud Die #16 - 1875-CC In Wreath F-107b
Retained Reverse Cud Between 8:30 - 9:30

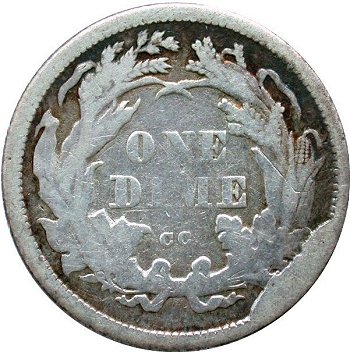

Cud Die #17 - 1875-CC In Wreath F-110b
Retained Reverse Cud Between 3:30 - 5:00

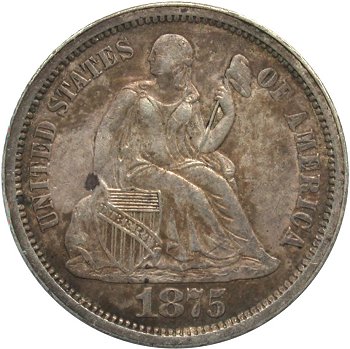

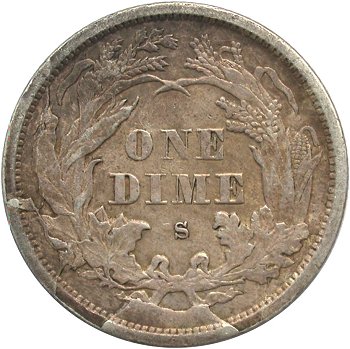

Cud Die #18 - 1875-S In Wreath F-101a
Large Reverse Cud at 6:00

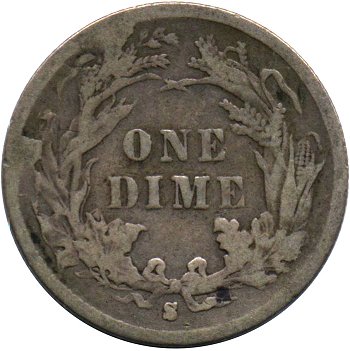

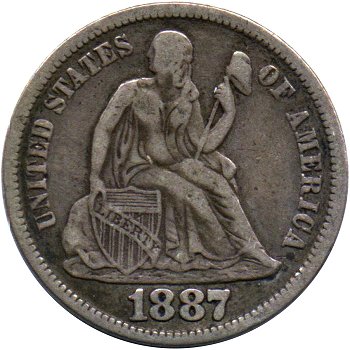

Cud Die #19 1887-S F-111a
Reverse Die Cuds at 9:00 and 11:00
Greer Plate Coin

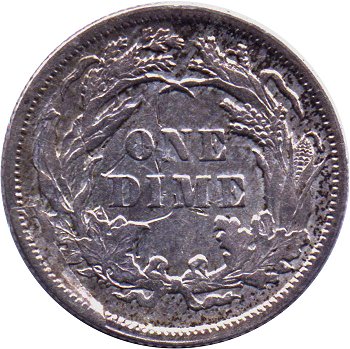

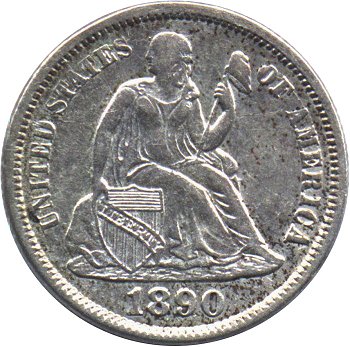

Cud Die #20 - 1890 F-117a
Retained Reverse Cud Between 7:00 and 9:00

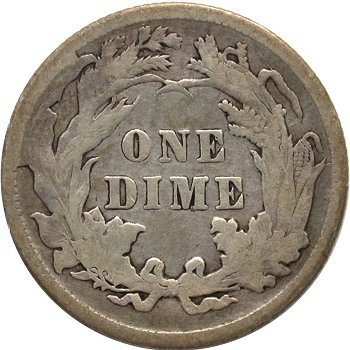

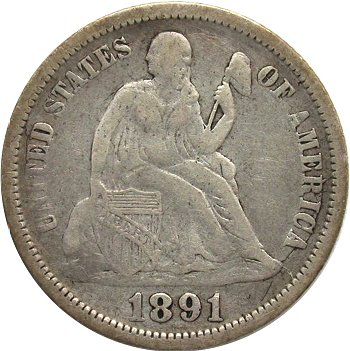

Cud Die #21 - 1891 F-106a
Retained Reverse Cud Between 7:00 and 9:00

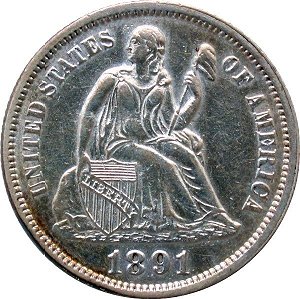

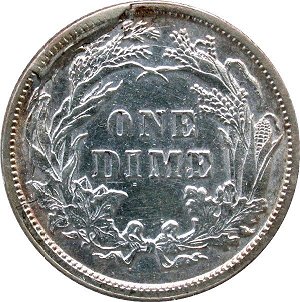

Cud Die #22 - 1891 F-112
Retained Reverse Cud Between 10:30 and 12:00

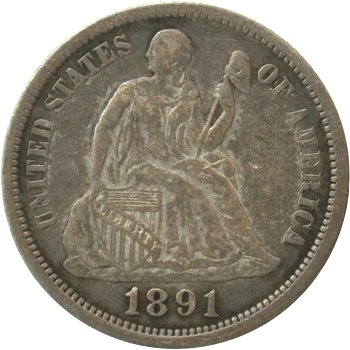

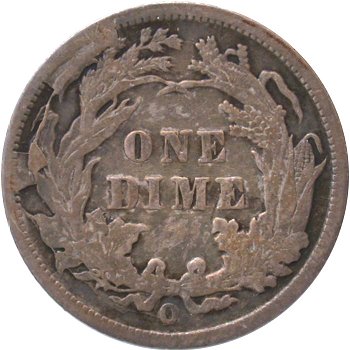

Cud Die #23 - 1891-O F-114b
Reverse Cuds at 9:00 and 10:00 to 11:00
Greer Plate Coin

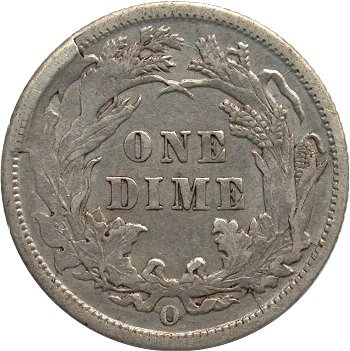

Cud Die #24 - 1891-O F-120
Massive Reverse Cud Between 2:30 and 4:30

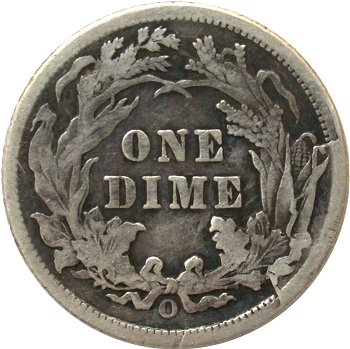

Cud Die #25 - 1891-O F-123a
Retained Reverse Cud Between 9:00 - 10:30
